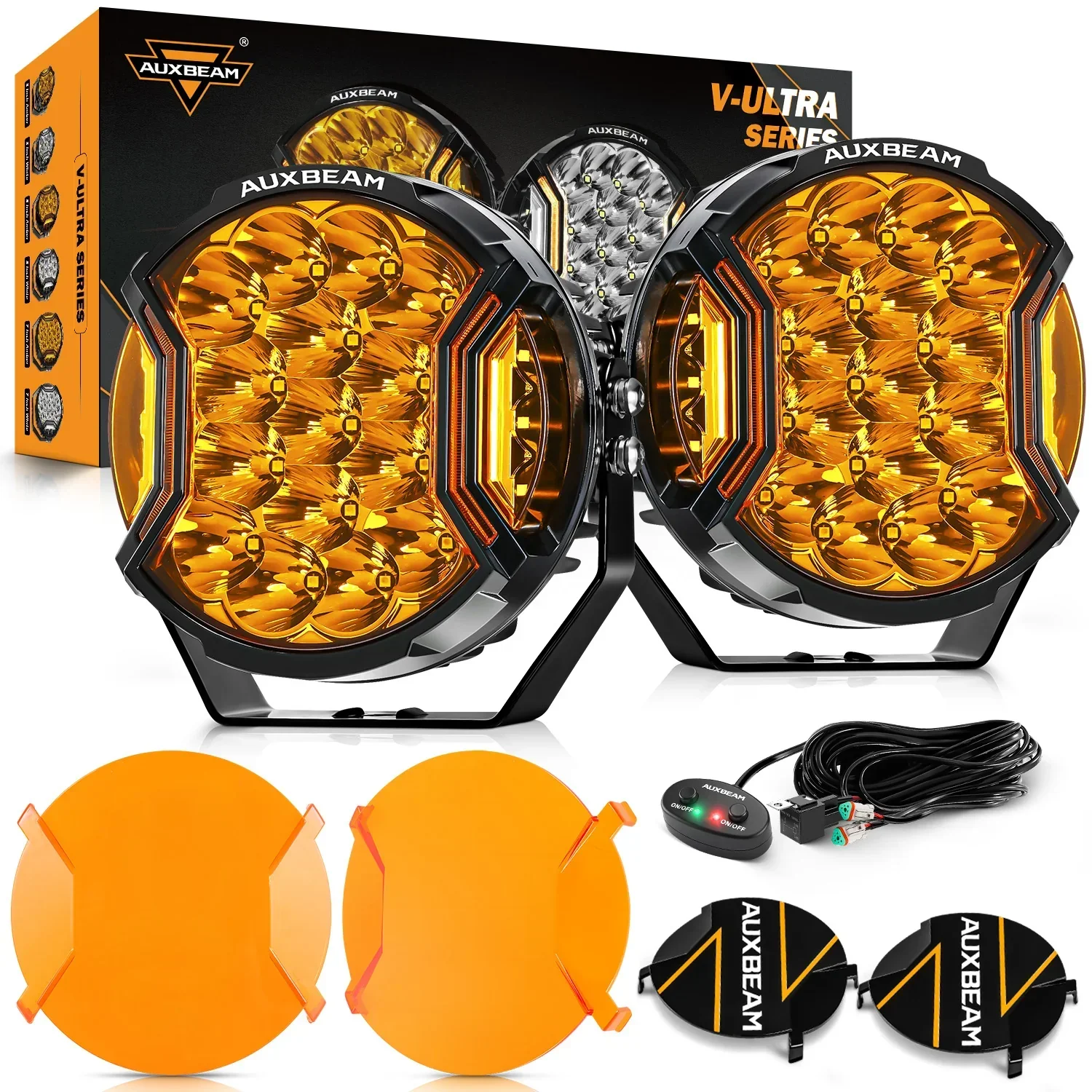

V-ULTRA Series | 7 Inch 226W LED Side Shooter Amber Pod Lights with Amber DRL

Features:

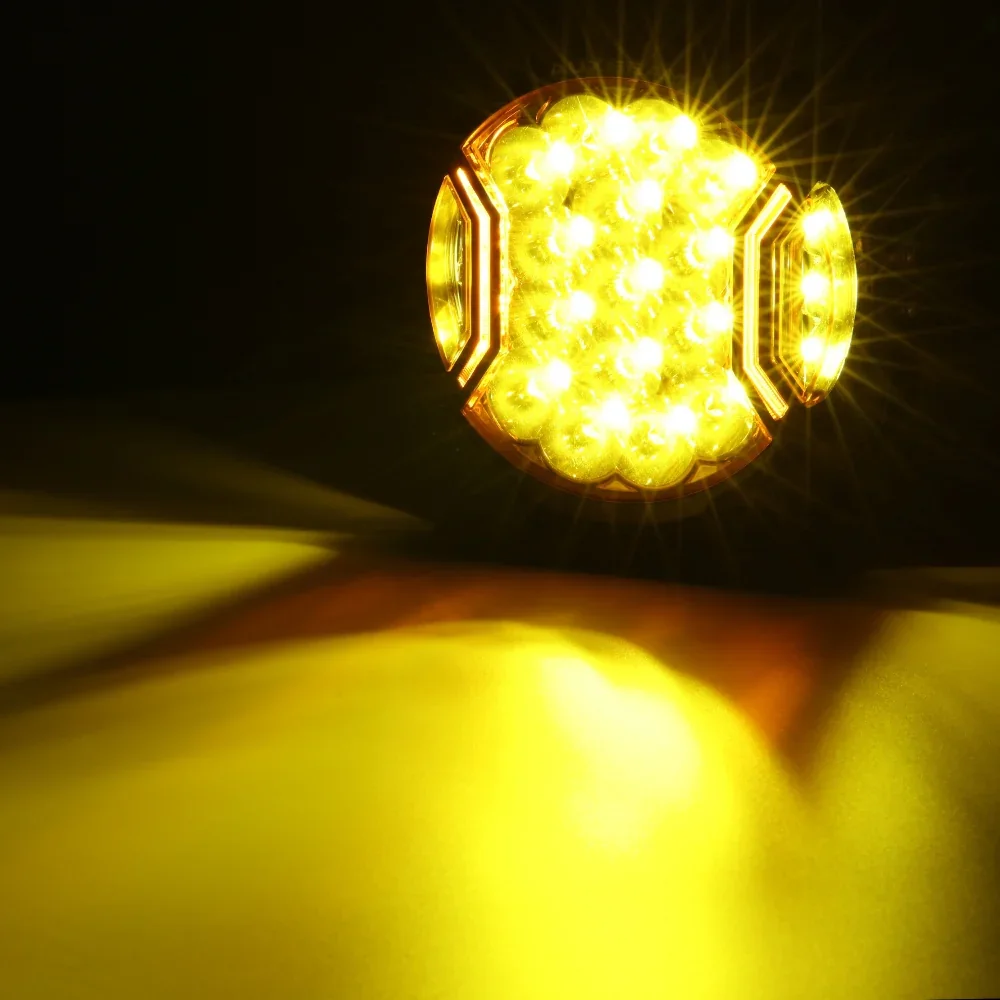

Shine Bright Like a Rockstar: Turn night into day with 226W of P8 LED and 2835 SMD brilliance! With a massive output of 26,800 lumens, you’ll see up to 2215 feet at 1 LUX. Experience precision beams that eliminate glare and enhance clarity, making every adventure unforgettable with Auxbeam V-Ultra Series
Lighting Knows No Bounds: Get an insane 270 degree of lighting coverage with a deep spotlight cup and dual side shooters! Clearly see up to 675 meters away with these 7-inch offroad lights. Plus, amber daytime running lights provide the perfect upgrade—because looking good and staying safe go hand in hand
Battle-Tested, Trail-Ready: Featuring a military breather and aluminum alloy housing boasting thick heat sinks, 7" LED pod lights stay cool under pressure! And don’t forget the attached protective light covers—protecting your lenses from scratches and keeping you road-legal—style meets functionality for your off-road adventures
All-Weather Durability: Rigorously tested for unbeatable performance, the 7-inch LED light bar comes equipped with sealing and breather holes for top-notch IP68 waterproofing, anti-fog, and anti-condensation. Tackle any driving condition like a pro—rain or shine, you’re always ready to roll.

Specification:

Size: 7 Inch
Quantity: 2Pcs
Power/Set: 226W | (Spotlights 105W+Amber DRL 8W)*2
Total Lumens: 26800LM | (12600LM+Amber DRL 800LM)*2
Lamp Beads Model(Each): P8 5W/PCS*21+2835 SMD 8W
Lighting Distance: 1 LUX@675M
Beam Pattern: (Spot+Hyper)Beam+Double-Side Shooter Light
Light Color: Amber Main Light+Amber DRL
Color Temperature: 3000K
Life Time: 50000+ hours
Lens Material: PC
Housing Material: Aluminum Alloy
Housing Color: Black
Waterproof Rate: IP68
Working Voltage: 12V-24V(Wiring harness Relay is 12V Only，can be replaced with 24V)

Packing Included:

2 X LED Driving Light（With DT Plug）
2 X Light Cover（Black）
1 X Wiring Harness（With DT Plug）
1 X Srew Accessories

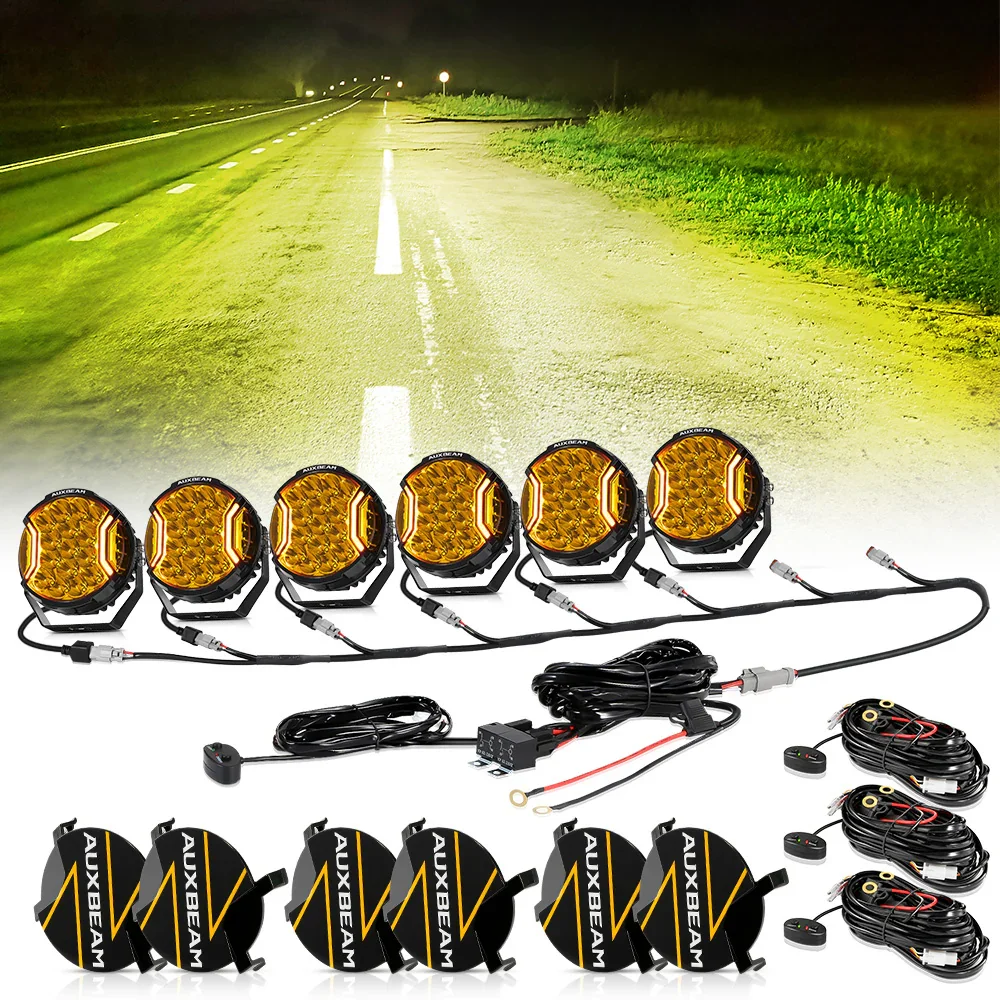

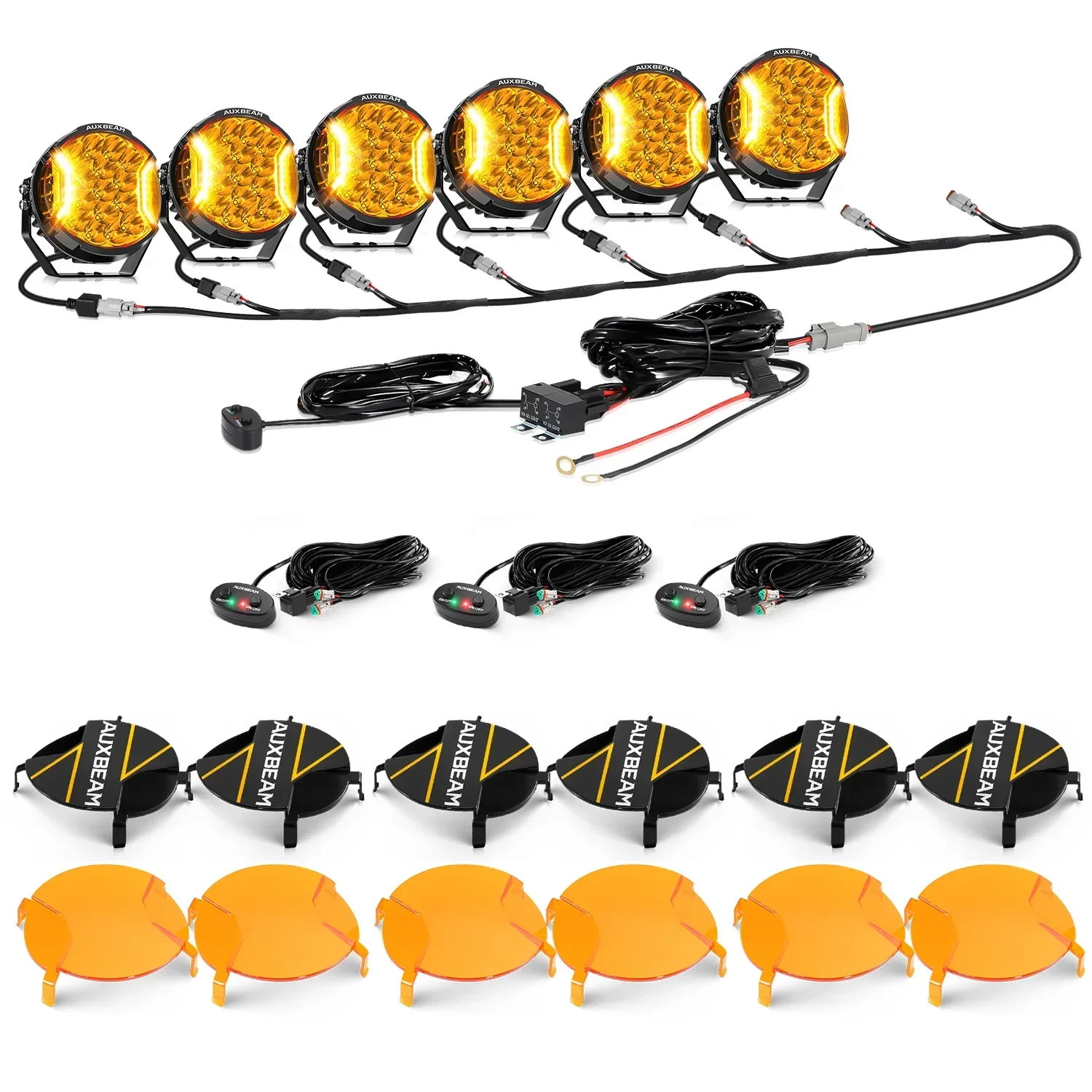

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000753/ZD000879/ZD000880/ZD000881
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821/ZD000892/ZD000891
Other Product: ZD000752

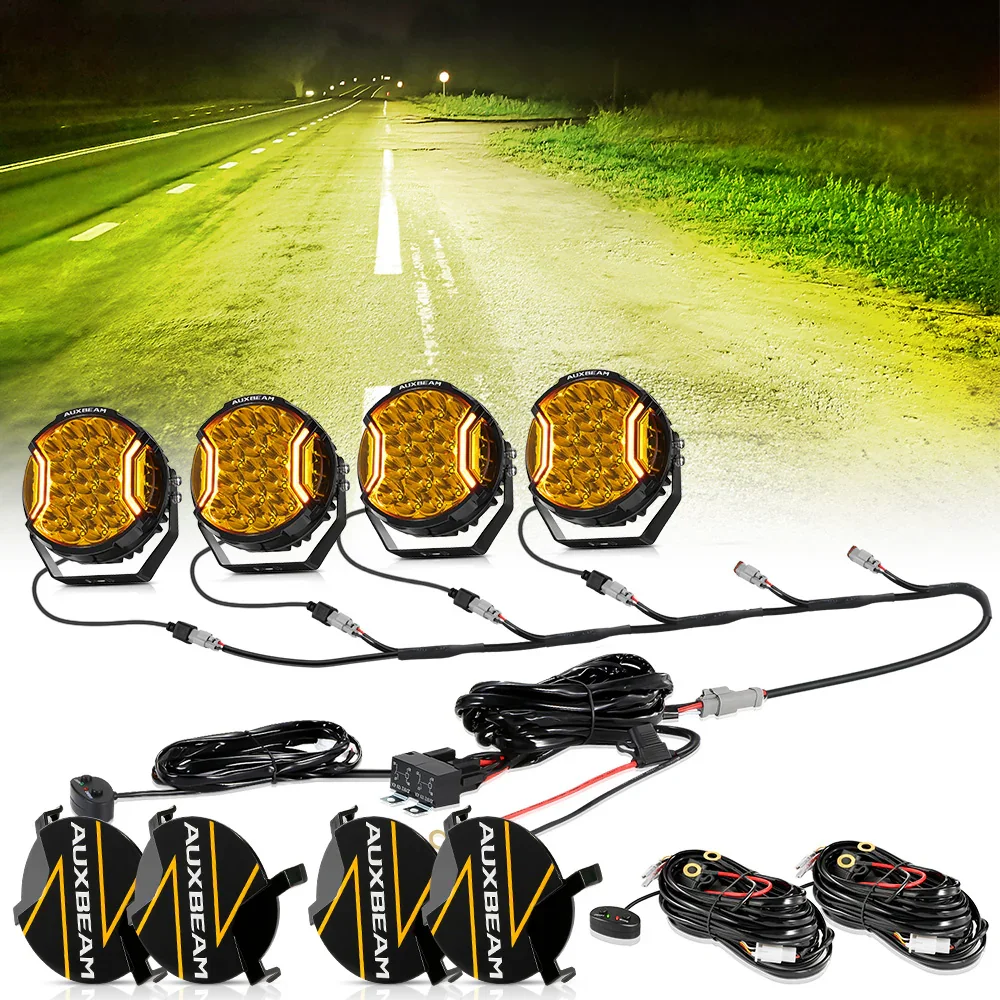

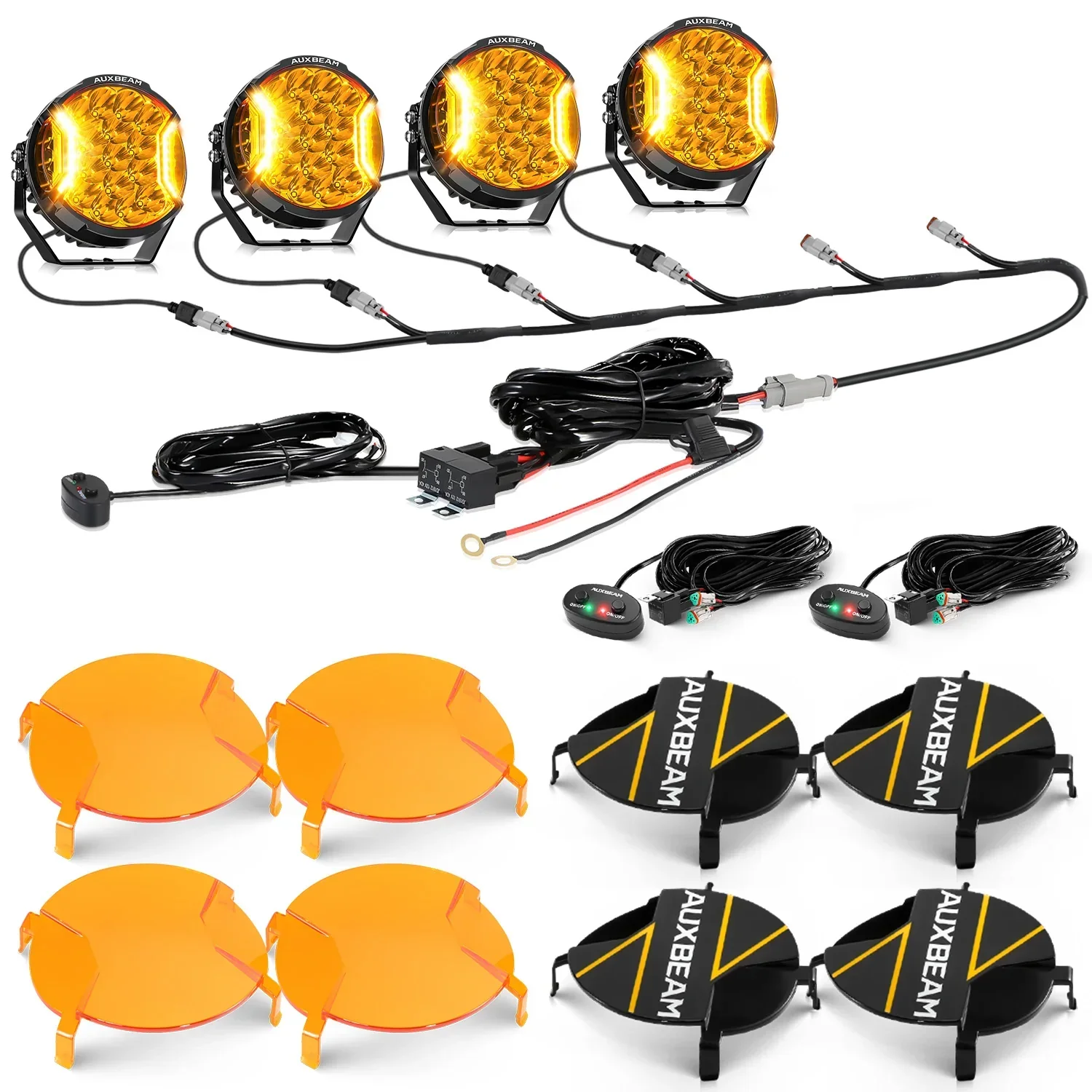

4-Pod Lights (A maximum of four pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
V-ULTRA Series: ZD000889/ZD000890
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000753/ZD000879/ZD000880/ZD000881
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821/ZD000892/ZD000891
Other Product: ZD000752

6-Pod Lights (A maximum of six pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
V-ULTRA Series: ZD000889/ZD000890
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG National Standard（DRL 18AWG）
Wire Material: 5 mm² Copper Wire（DRL 0.75mm²）
Working Voltage: 12V（Replaceable 24V relay）
Delay: Double 12V delay

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A
